1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.
2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

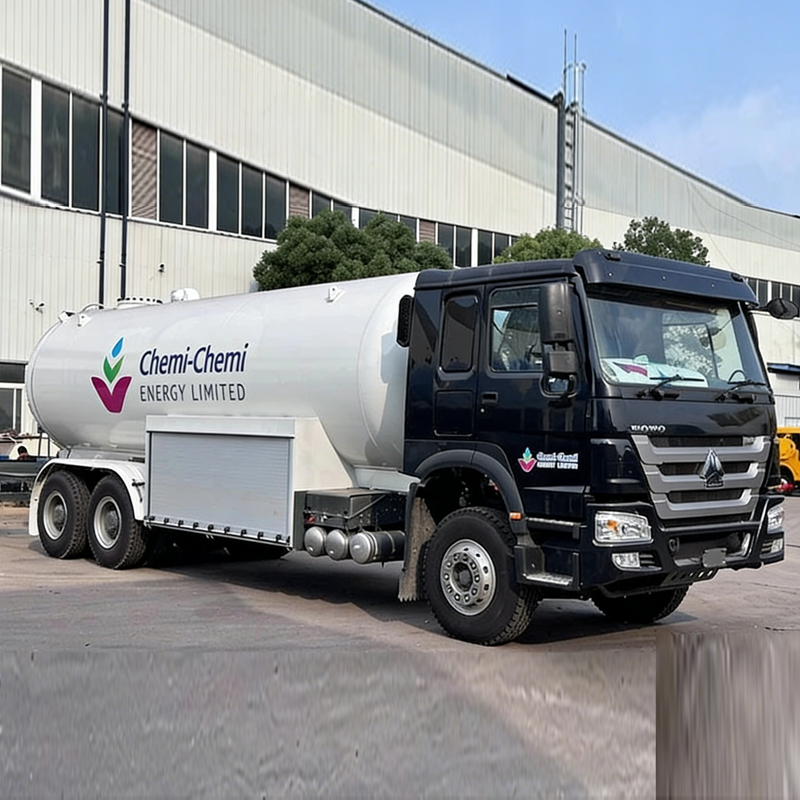

| HOWO 20m³ LPG Refilling Truck (Chassis) | |
| Chassis Model | ZZ125 |
| Driving Model | 6×4 |
| Cab | • Right Hand Driving |
| • with air conditioner | |
| • Central lock | |
| • Steer Assistance | |
| • Electric Window | |
| Wheel Base | 4600+1350 mm |
| Axle Loading (front/rear) | 9500 / 16000×2 kg |
| External Dimensions (L×W×H) | 10260×2500×3500 mm |
| Net weight (Kg) | 9870 |
| Approach / Departure Angle | 20/12° |
| Max. Driving Speed | 105 km/h |
| Engine | Model: WP10.380E22 |
| Weichai diesel engine, | |
| 6 cylinders in a line, | |
| Water cooled,turbocharged,after cooled, cold start. | |
| Horse Power: 380hp | |
| Emission standard: Euro 2 | |
| Displacement: 9726 ml | |
| Max. Torque: 1600 N.m | |
| Gearbox | Manual type |
| 10 forward & 2 reverse | |
| Clutch | Reinforced diaphragm clutch |
| Tire | 12.00R20 18PR |
| 10 Pcs with 1 spare tire | |
| Fuel Box | 400L /steel material |
| LPG Tank Specification (20m³) | |
| Filling Medium | Liquefied Petroleum Gas |
| Working Temperature | -40~50℃ |
| Volume | 20,000 Liters |
| Tank Material | Q345R |
| Tank Diameter | 2050 mm |
| Tank Thickness | 12 mm |
| End Plate Thickness | 12 mm |
| Tank Length | As designed |
| Gas Phase | Flange Type, DN50/2" |
| Liquid Phase | Flange Type, DN50/2" |
| Filling Gas | Propane (LPG) |
| Working Pressure | 1.61 Mpa |
| Design Pressure | 1.71 Mpa |
| Testing Pressure | 2.21 Mpa |
| Corrosion Allowance | 1.0 mm |

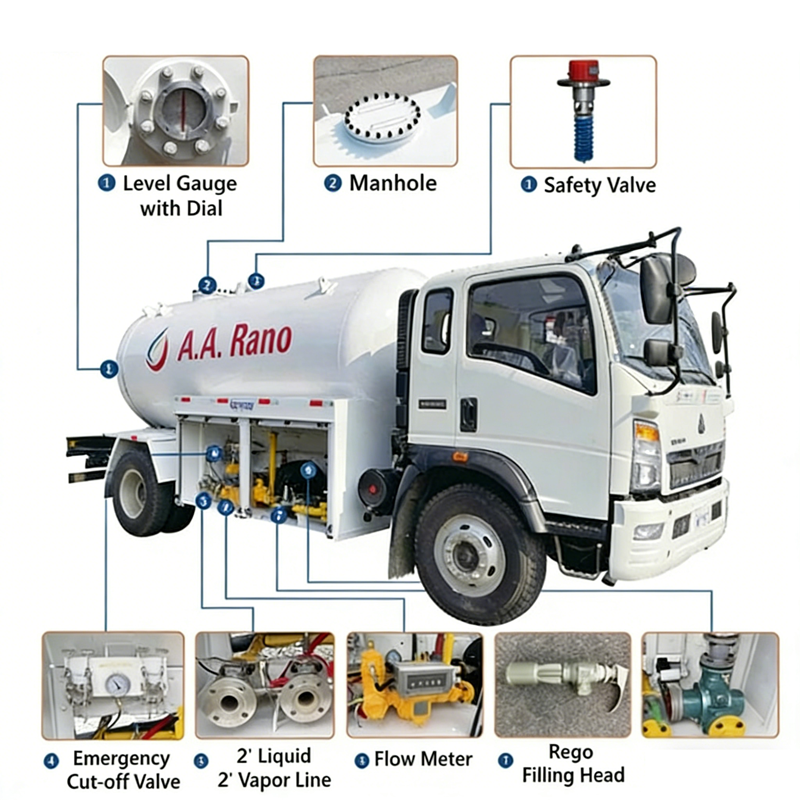

| Refilling Accessory | |
| Directly driven by PTO (easy for future maintenance) | - |
| LPG Pump | Chinese Brand CLW 15-5 |
| Inlet 2" NPT and Outlet 2" NPT | |
| Flow Rate: 15.5m³/h | |
| 780 r/min for Rotation Speed | |
| LPG Flow Meter | TSC-50 Model |
| Showing Filling Volume | |
| Inlet / Outlet 2"/ DN50 | |
| Maximum Capacity: 76~380lpm | |
| With mechanical register, strainer, air eliminator, diff, valve and back check valve | |
| With ticket printer | |
| Filling Hose | 15 m, retractable with REGO adapter for small tank refilling |
| Level Gauge | Rochester level gauge or Chinese brand |
| Safety Valve | Model: A412F-25-16 |
| Type: Built-in | |
| Nominal Pressure: 2.5Mpa | |
| Safety Return Valve | 1 pc |
| Pipeline Safety Valve | 1 pc |
| Equipment & Valve Box | Located at side of LPG bobtail (opposite driver's side) |
| Manhole | DN450 |
| Thermometer | 1 pc, WTQ-280 |
| Pressure Gauge | 2 pc, YN-100T |
| Emergency Shut Off Valve | 2 pc |
| With switch inside valve box and at rear of truck | |
| Fender | Steel |
| Fire Extinguisher Holder | 1 set |
| Static Conductive Tape | 1 pc |
| Painting & Logo | Can be customized |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
