1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.
2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| Chassis Technical Parameters | |
| Driving mode | Shacman X3000 6×4 |
| Overall dimension | 9500*2550*3420mm |
| Gross weight | 25,000kg |
| Curb weight | 12,500kg |
| Payload | 10,000kg, 10tons |
| Wheelbase | 4375+1400mm |

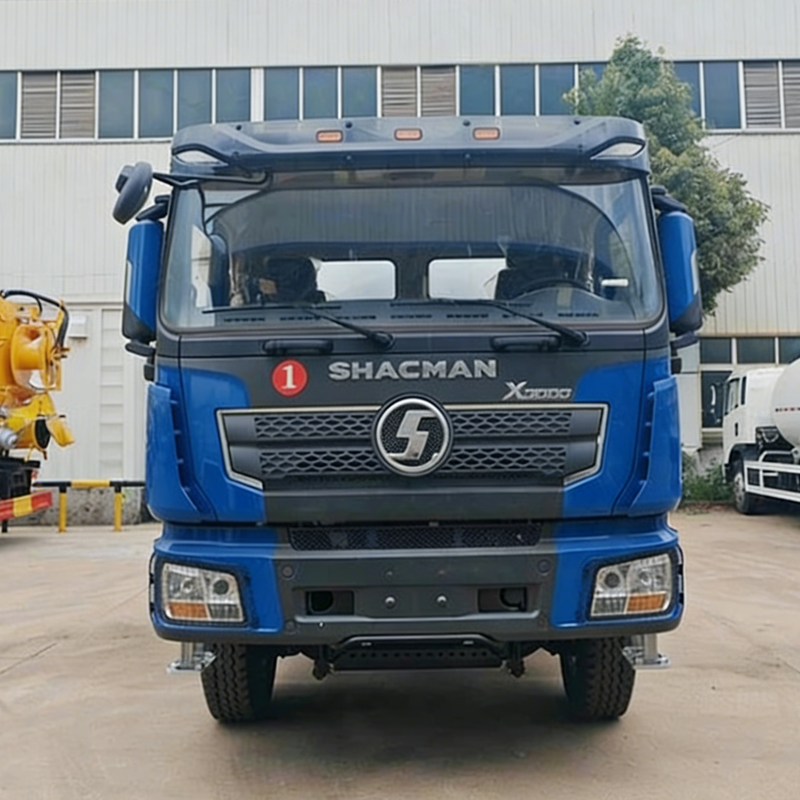

| Cabin | SHACMAN X3000 flat top cab; |
| 2-3 seats with one sleeper; | |
| With air conditioning | |
| Engine - Brand | WEICHAI engine, |
| Engine - Horsepower | 340hp; |
| Engine - Emission standard | Euro II |
| Engine - Displacement | 7,800ml |
| Gear box | 8JS85T, 8 forward gears and 2 reverse |
| Max driving speed | 95km/h |
| Tyre | 12.00R20 (10pcs with 1 spare) |
| Front axle loading | 7,500kg |
| Rear axle loading | 13,000kg |

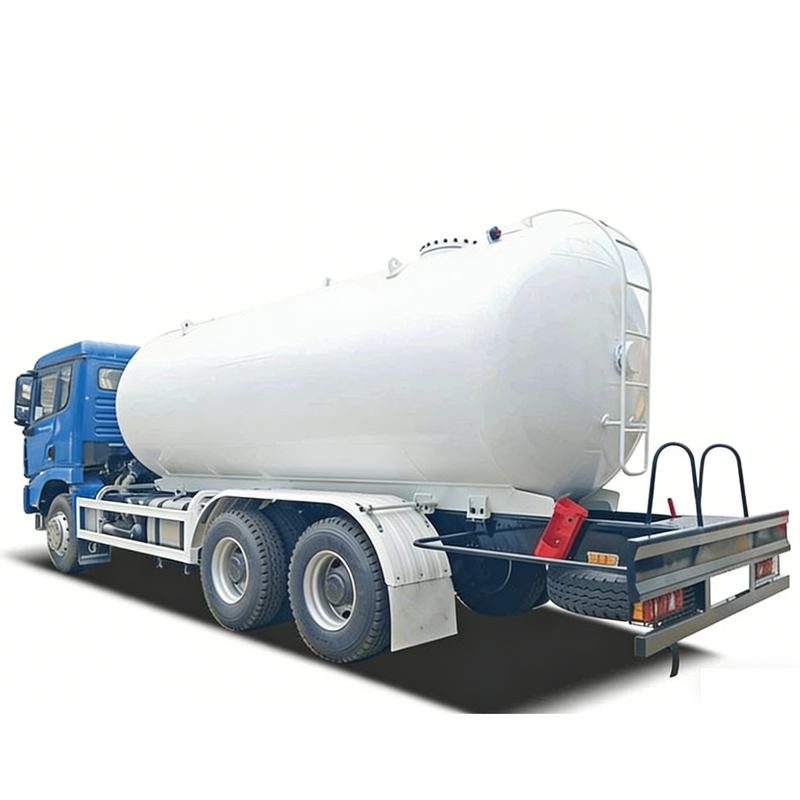

| Tank body parameters | |
| LPG tank volume | 20,000 liters |
| Tank material | Q345R |
| Tank diameter | 2,050mm |
| Tank thickness | 10mm |
| End plate | 10mm |
| Tank length | As designed |
| Gas phase | DN25 or DN50 or customized |
| Liquid phase | DN 50 or DN80 or customized |
| Filling gas | Propane (LPG) |
| Design pressure | 1.61Mpa |
| Hydraulic temperature | 2.21Mpa |
| Working temperature | -20~50℃ |
| Design code | GB150.1~2011 |
| Accessories | |
| Level gauge | Rochester Float ball type at the rear of tank |
| Safety valve | DN80*1 |
| Manhole | DN450 |
| Tool and valve box | Equipped |
| Radiator of hydraulic oil | Equipped |

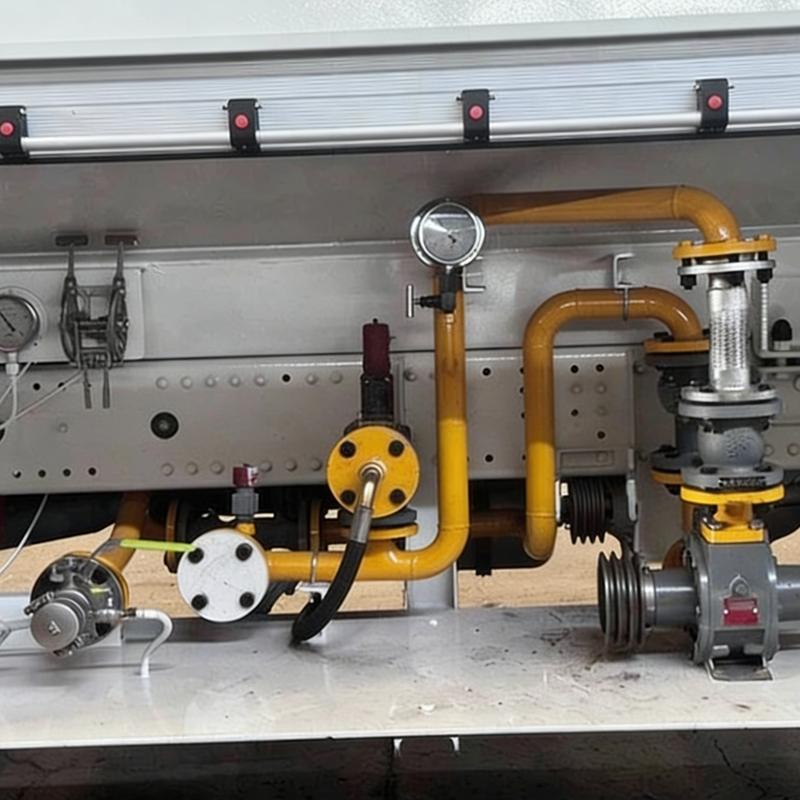

| LPG pump | USA brand CORKEN vane pump, driven by truck engine through PTO |
| Dispenser machine | Single nozzle with English remarks |
| Filling hose | 15 meters |
| Pressure gauge | One set |
| thermometer | One set |
| Emergency valve | Controlled valve box and installed at the rear of truck |
| Fender | Steel material |
| Fire extinguisher holder | Installed at left and right sides of rear truck *2 |
| Exhaust shaft | At the front of truck cabin for safety |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
