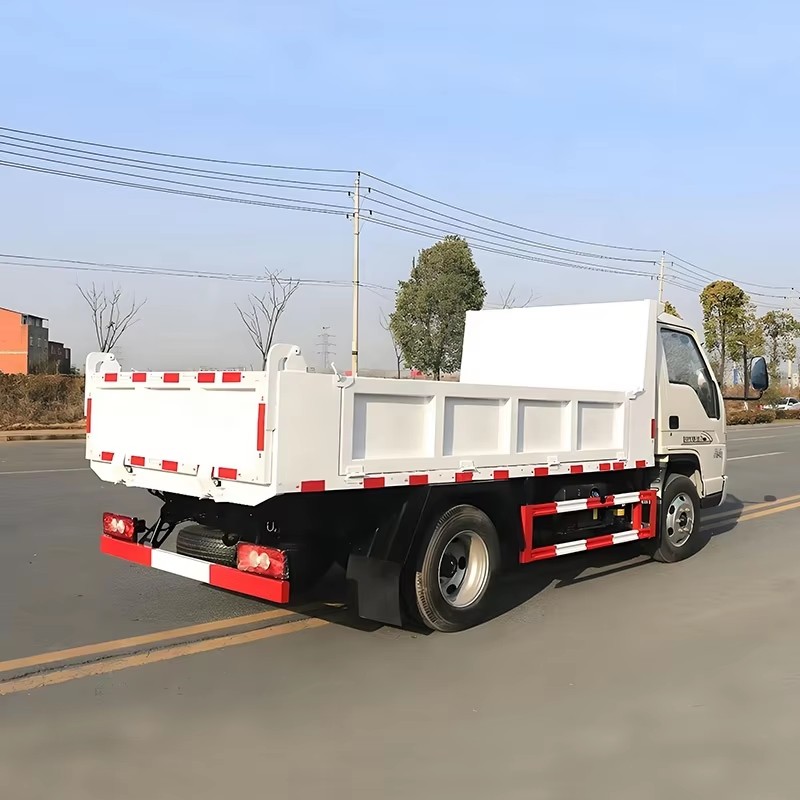

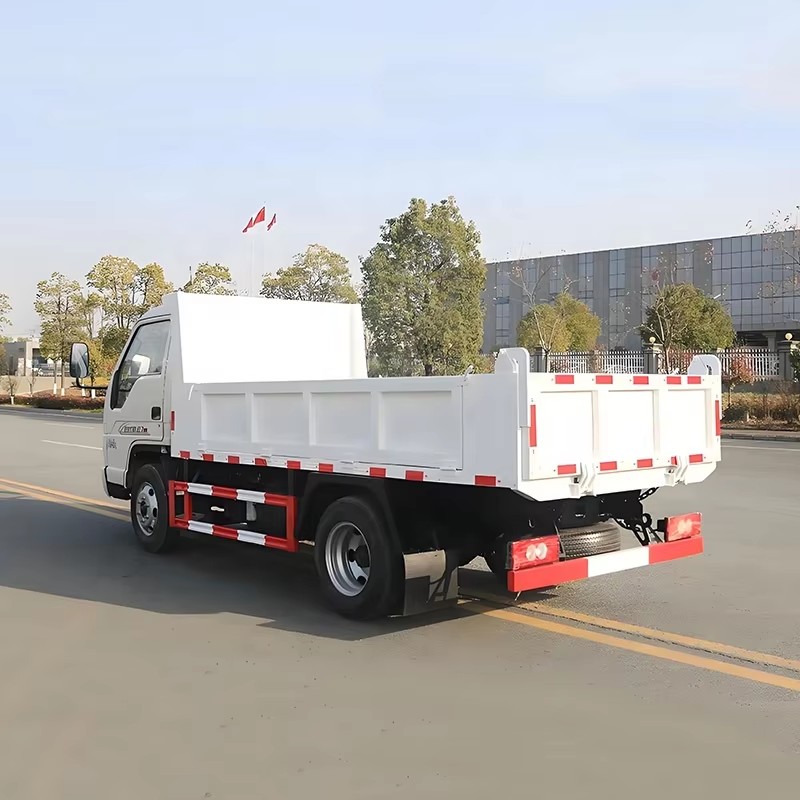

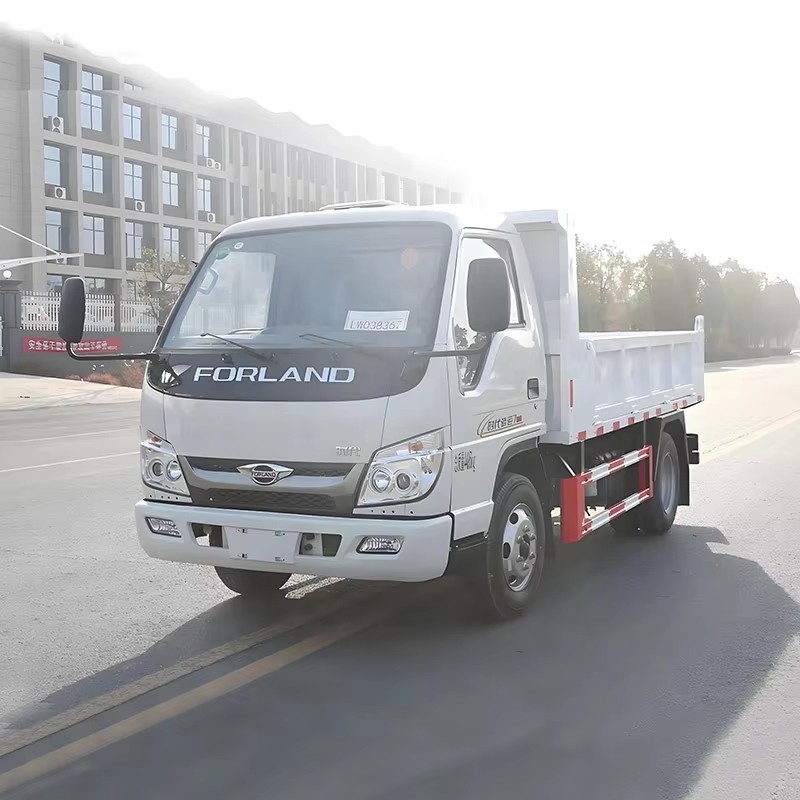

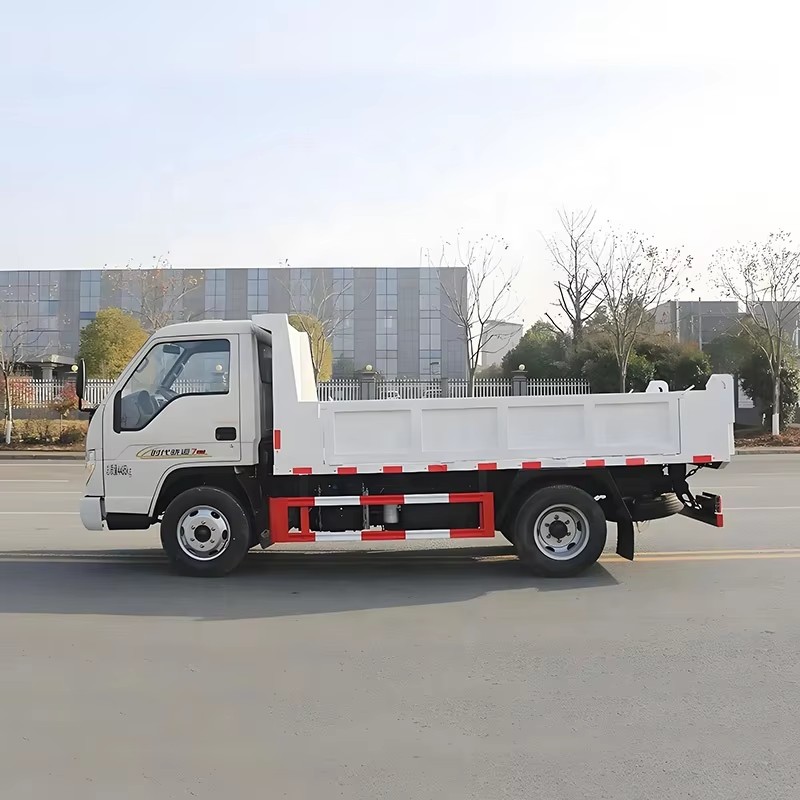

Foton 5Ton 7Ton Tipper Truck 4x2 Mini Dump Truck for Sale

Inquiry now

Vehicle Technical Parameters
Product Name	Dump Truck
Overall Dimensions(mm)	6380×2360×2580
Curb Weight(Kg)	5760
Loading Capacity(Kg)	6040
Total Mass(Kg)	11995
Cargo Tank Dimension（mm）	4350×2150×800
Cargo Tank Volume(m³)	7
Tank Body Material	carbon steel
Cargo Tank thickness（mm）	Side 3 bottom 4
Cargo Tank Lifting Method	Hydraulic Cylinder Lifting
Number of Cylinders（pcs）	2
Cylinder Position	Girder in the middle
Cylinder Diameter（mm）	100
Door Position	Rear/Side/Top
Chassis Technical Parameters
Chassis Brand	FOTON
Drive Form	4*2
Steering Wheel	Left hand drive
Steering Device	Power assisted steering
Wheelbase(mm)	3800
Engine Brand and Model	Yuchai Power/YC4FA-33
Max Engine Power(Kw)	89
Engine Displacement(ml)	2999
Engine Emission Standard	Euro 3
Number of Engine Cylinders	4
Fuel Type	Diesel
Gearbox	5speed forward 1 reverse
Front/Rear Axle(t)	3/5
Suspension	Multi leaf springs
Brake System	Front/Rear Drum full air braking
Wheels and Tyre Size	6+1/( 7.50R16LT)
Cab Configuration	Single row cab, air conditioning, radio, MP3 and USB port
Rated Voltage	12V,DC
Cab Color	White,other color is optional
