1.LPG Filling Skid/Station: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.

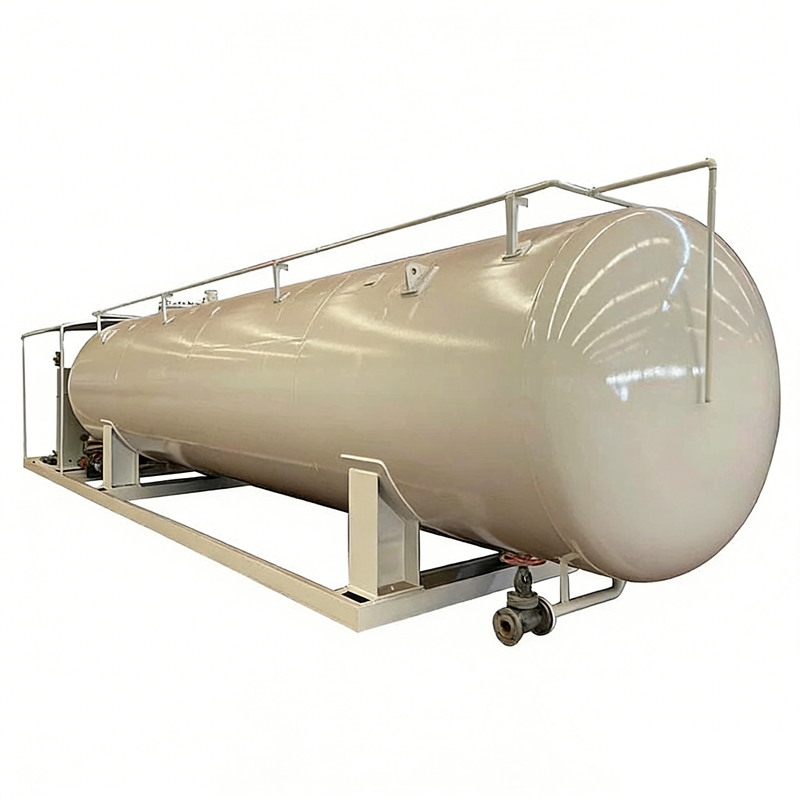

2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| Item | Value | ||
| Volume of Tank | 25 CBM | ||
| Filling Weight | 12500 kg | ||
| Tank Weight | 6120 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Head (mm) | 12 mm | ||
| Tank Diameter | 1800 mm | ||
| Overall Size (length x width x height) | As designed | ||
| Material of Tank | Carbon Steel Q345R | ||
| Design Pressure | 1.77 MPa | ||
| Hydraulic Test Pressure | 2.22 Mpa | ||
| Design Temperature | -20°C~50°C | ||
| Heat Treatment | Bulk | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 580 kg/m³ | ||
| Vapor Outlet | DN50 | ||
| Gas Outlet | DN50 | ||
| Life Time | 15 years | ||
| Manufacturing Standard Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Model | Item | Qty | Junction Surface |
| A42F-25-100 | Safety Valve DN100 | 1 | RF |
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF |
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF |
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF |
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | / |
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF |
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | / |
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40°C~60°C |
Feature

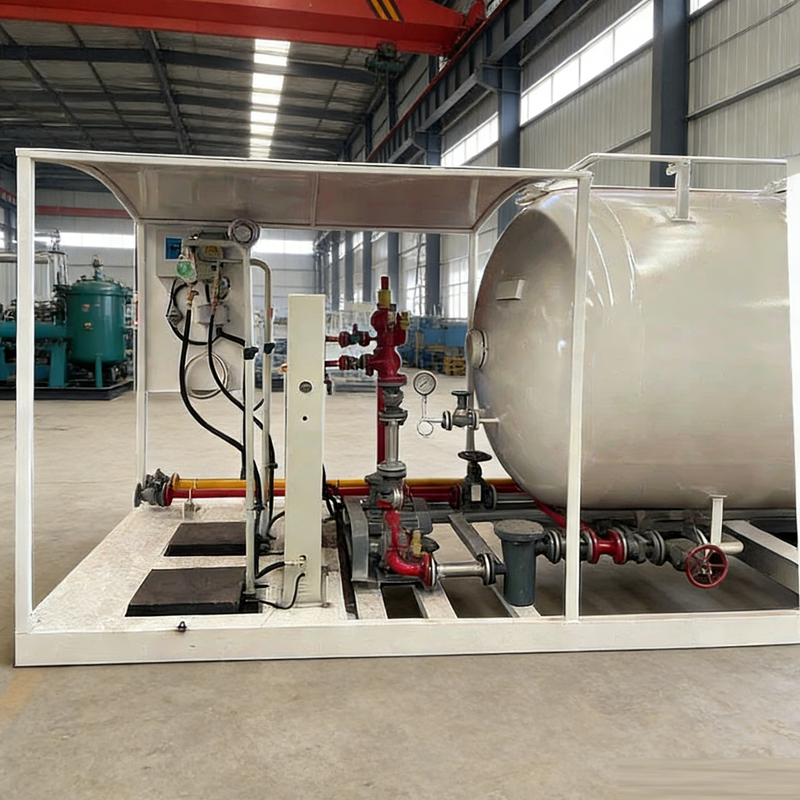

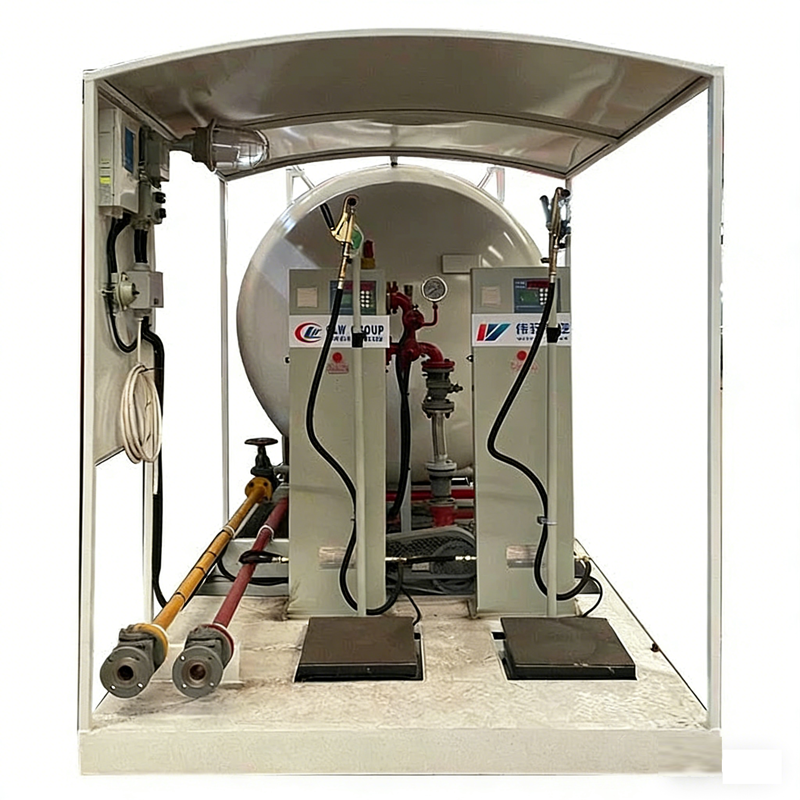

1. Ipg skid filling station for cooking gas refilling in home use cylinder in different size.
2. One Ipg skid filling station with 2 Function: Truck Discharging & Cylinder Refling with 1 Pump。
3. Digital Filling Scale with Auto Filling Cut-off Thousans of Record Keeping, net & Gross Filling。
4. Pump of Ipg skid flling station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand。
5. Motor of Ipg skid flling station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW。
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system。
8. Other Equipment: Sunshade for filling area, Leakage Detectorex-plosive lamp。
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
