1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.
2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| Item No. | Parameters |
| Chassis Parameters | |
| Overall Dimension | 8000x2500x3450 mm |
| Driving Model | Right hand drive for Zimbabwe |
| Gross Vehicle Weight | 18,000 kg |
| Curb Weight | 10,500 kg |
| Payload | 7,500 kg |
| Wheel Base | 4500 mm |
| Front Axle | 4,800kg |
| Rear Axle | 10,000kg |
| Engine - Model | WP6.210E32 |
| Engine - Type | WEICHAI diesel engine,6-cylinders in a line,Water cooled,turbocharged,after cooled , cold start. |
| Engine - Horse Power | 210Hp |
| Engine - Max output power | 155kW |
| Engine - Emission standard | Euro III |
| Engine - Displacement | 6230ml |
| Engine - Rated Speed | 1400~1600 rpm |
| Gearbox | Manual type, FAST 8JS85TM, 8 forward gears & 2 reverse |
| Cab | Original SHACMAN L3000 cabin with one sleeper |
| Right Hand Drlving for ZImbabwe | |
| with air conditioner | |
| Central lock | |
| Electric window | |
| Clutch | Reinforced diaphragm clutch |
| Tire | 10.00R20, 6 pieces with 1 spare tire. |
| Fuel box | 200L /steel material |
| Exhaust Pipe | At front of Cabin for safety |
| LPG tank | |
| Filling Medium | Liquefied Petroleum Gas |
| Working temperature | -40~50 ℃ |
| Volume: | 15,000Liters |
| Tank material: | Q345R |
| Tank diameter: | 1900mm |
| Tank thickness: | 10mm |
| End plate thickness: | 10mm |
| Tank length: | As designed |
| Gas phase | Flange type,DN50/2" or according to customer request |
| Liquid Phase | Flange type,DN50/2" or according to customer request |
| Filling gas | Propane(LPG) |
| Working Pressure: | 1.61Mpa |
| Design Pressure | 1.71 Mpa |
| Testing pressure | 2.21Mpa |
| Corrosion Allowance | 1.0 mm |
| Refilling Accessory | |
| Directly driven by PTO(easy for future maintenance) | - |
| LPG Pump | Chinese brand YQ15-5 |
| Flow rate:15.5M3/H | |
| 10 Mpa inlet pressure | |
| 780 r/min for rotation speed | |
| LPG Flow meter | TSC-50 model |
| Showing filling volume | |
| Inlet/Outlet 2"/DN50 | |
| Maximum Capacity:76~380lpm | |
| With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve | |
| with Ticket Printer. | |
| Filling hose | 15M,retractable with REGO adapter |
| Level Gauge | Chinese brand YWJ-25 |
| Float Ball type | |
| at the rear of tank | |
| Nominal Pressure 2.5 mpa | |
| Showing in percentage | |
| Safety Valve - Model No. | A412F-25-16 |
| Safety Valve - Type | Built-in |
| Safety Valve - Nominal Pressure | 2.5 Mpa |
| Safety return valve | 1 PC |
| Pipeline safety valve | 1 PC |

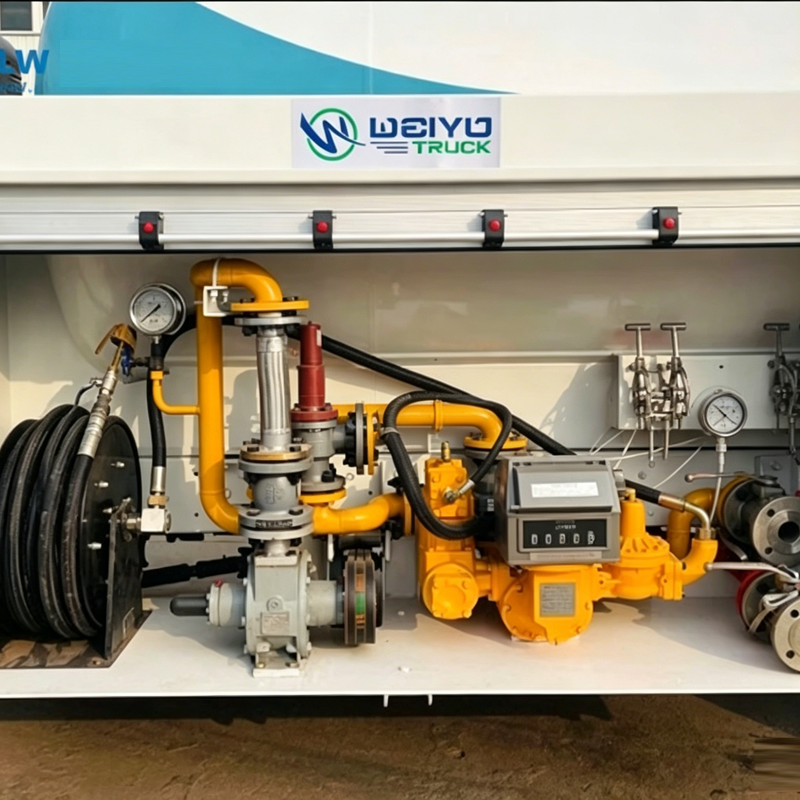

| Equipment and Valve Box | Located at side of LPG bobtail (opposite driver's side) |
| Strong design with rolling off cabinet | |
| Manhole | DN450 |
| Thermometer | 1 pc, WTQ-280 |
| Pressure Gauge | 2 pc, YN-100T |
| Emergency shut off Valve | 2 pcs with switch inside valve box and at rear of truck |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
