1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.
2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.
3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| Specification of Truck Chassis | |
| Chassis Model | Dongfeng Tianjin, Left hand driving |
| Cab | Dongfeng Tianjin,Tiltable cabin for easy maintenace |
| One and half cabin | |
| with air conditioner | |
| Wheel Base | 5000mm |
| Axle Loading (front/rear) | 5000/10000 kg |
| External Dimensions (L × W × H) | 7850X2490X3250mm |
| Max. driving speed | 95 km/h |
| Engine - Model | Cummins B190-33 |
| Engine - Type | 6-cylinders in a line, turbo-charging and inter-cooling |
| Engine - Horse Power | 190Hp |
| Engine - Max output power | 140 kW |
| Engine - Emission standard | Euro 2 |
| Engine - Displacement | 5.9 L |
| Gearbox | Manual type, 8 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Tire | 10.00R20, 6 pieces with 1 spare tire. |
| LPG tank | |
| Filling Medium | Liquefied Petroleum Gas |
| Working temperature | -40~50 °C |
| Volume: | 16,000Liters |
| Tank material: | Q345R |
| Tank diameter: | 2000mm |
| Tank thickness: | 10mm |
| End plate thickness: | 12mm |
| Tank length: | As designed |
| Gas phase | Flange type,DN50/2" or according to customer request |
| Liquid Phase | Flange type,DN50/2" or according to customer request |
| Filling gas | Propane(LPG) |
| Working Pressure: | 1.61Mpa |
| Design Pressure | 1.71 Mpa |
| Testing pressure | 2.21Mpa |
| Corrosion Allowance | 1.0 mm |
| Refilling Accessory | |
| Directly driven by PTO | - |
| LPG Pump | Chinese brand CLW 15-5 |
| Inlet 2" NPT and Outlet 2" NPT | |
| Flow rate :15.5 m3/h | |
| 780 r/min for rotation speed | |

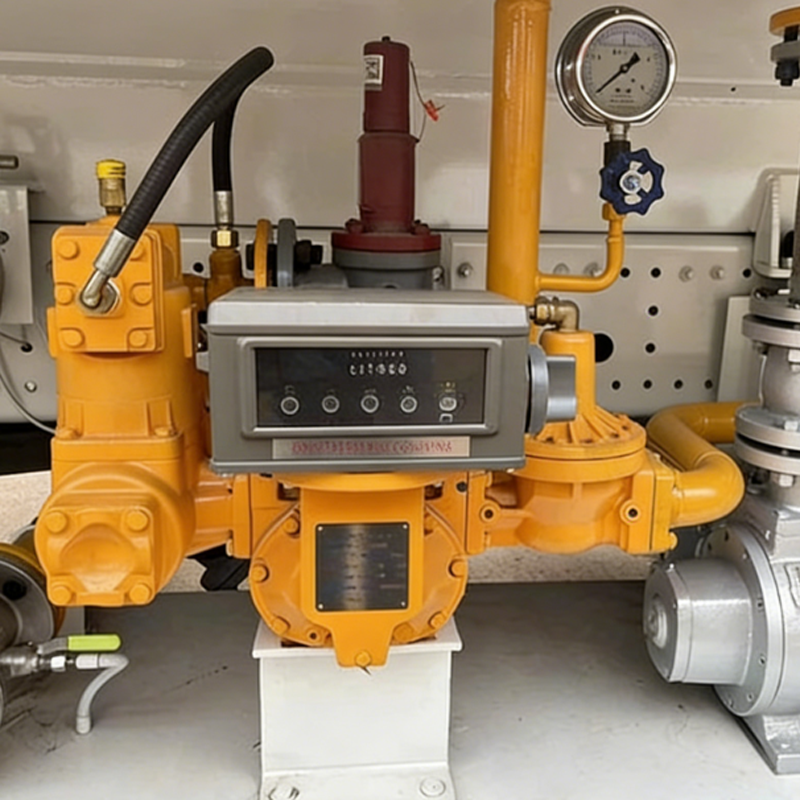

| LPG Flow meter | TSC-50 model |
| Showing filling volume | |
| Inlet/Outlet 2"/DN50 | |
| Maximum Capacity:76~380lpm | |
| With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve | |
| with Ticket Printer. | |
| Filling hose | 15M-30M,retractable with REGO adapter for small tank refilling |
| Level Gauge | Rochester level gauge or Chinese brand |
| Safety Valve - Model No. | A412F-25-16 |
| Safety Valve - Type | Built-in |
| Safety Valve - Nominal Pressure | 2.5 Mpa |
| Safety return valve | 1 PC |
| Pipeline safety valve | 1 PC |
| Manhole | DN450 |
| Thermometer | 1 pc, WTQ-280 |
| Pressure Gauge | 2 pc, YN-100T |
| Emergency shut off Valve | 2 pcs with switch inside valve box and at rear of truck |
| Fender | Steel |
| Fire Extinguisher Holder | 1 set |
| Static conductive tape | 1 pc |
| Painting | customized logo painting |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
