Product Name

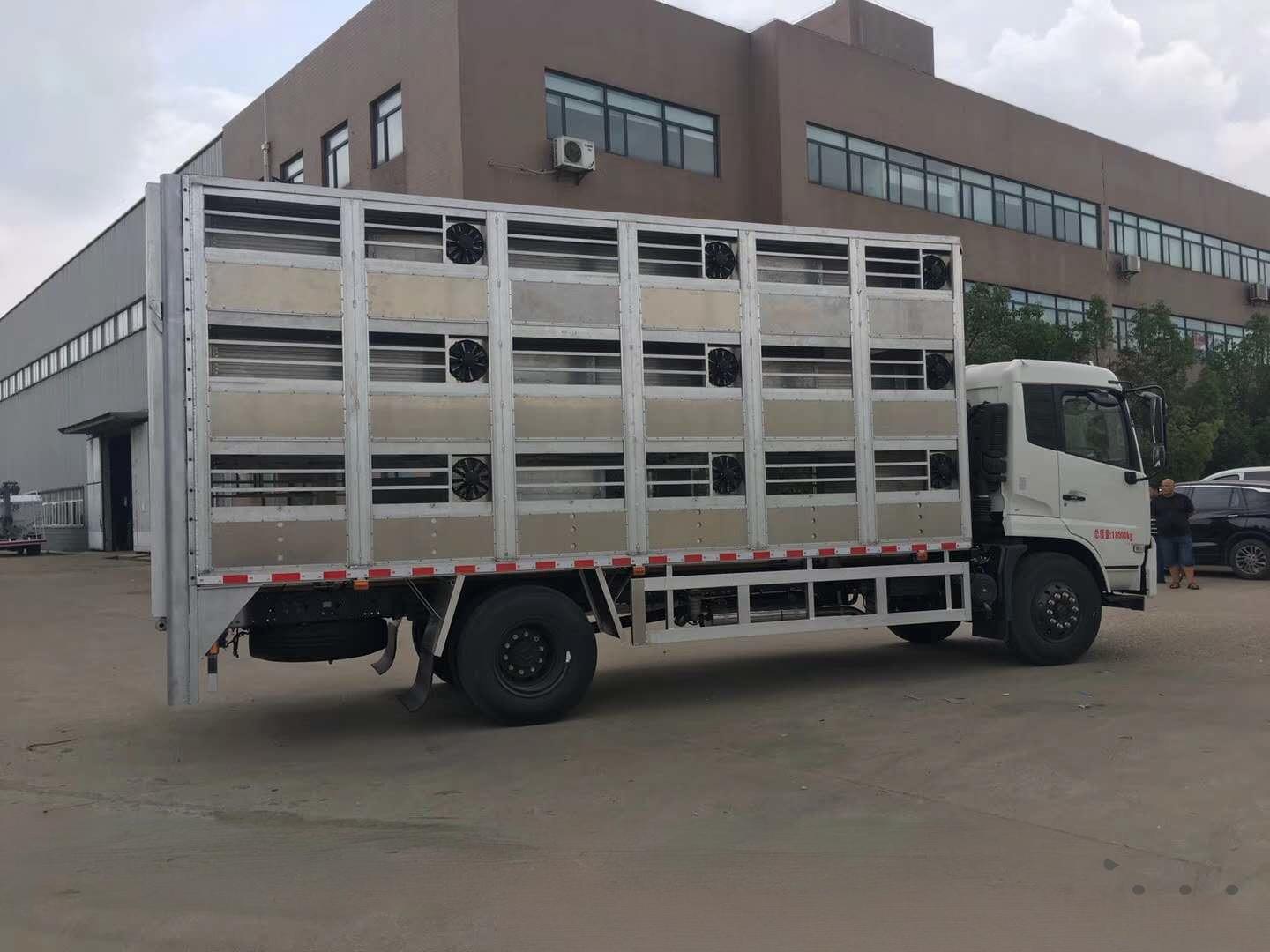

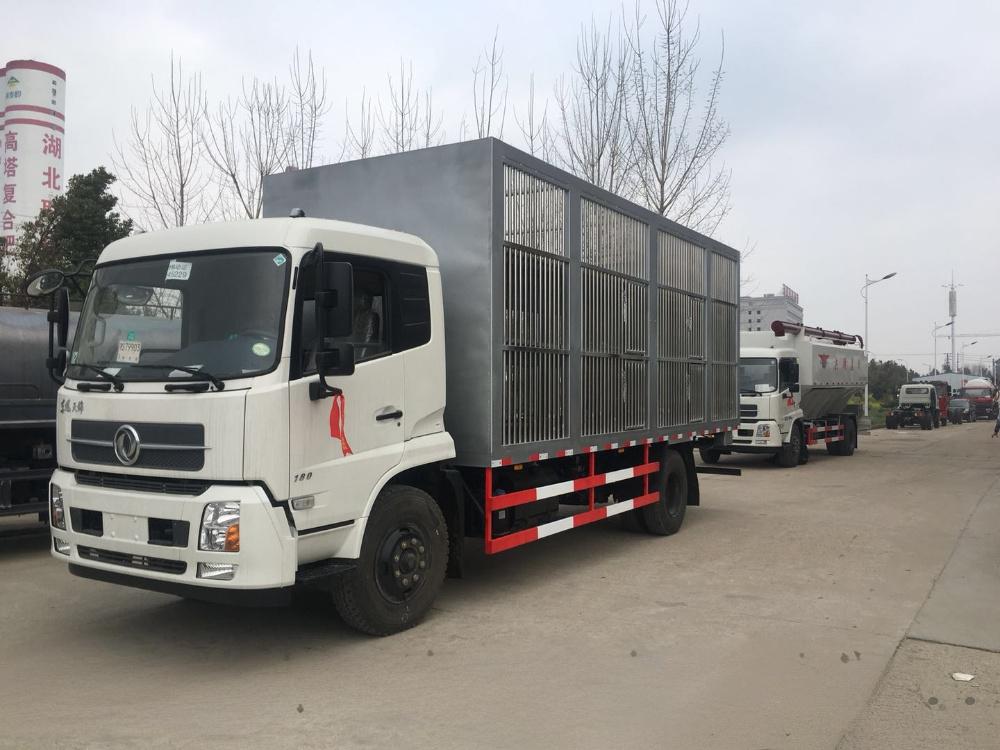

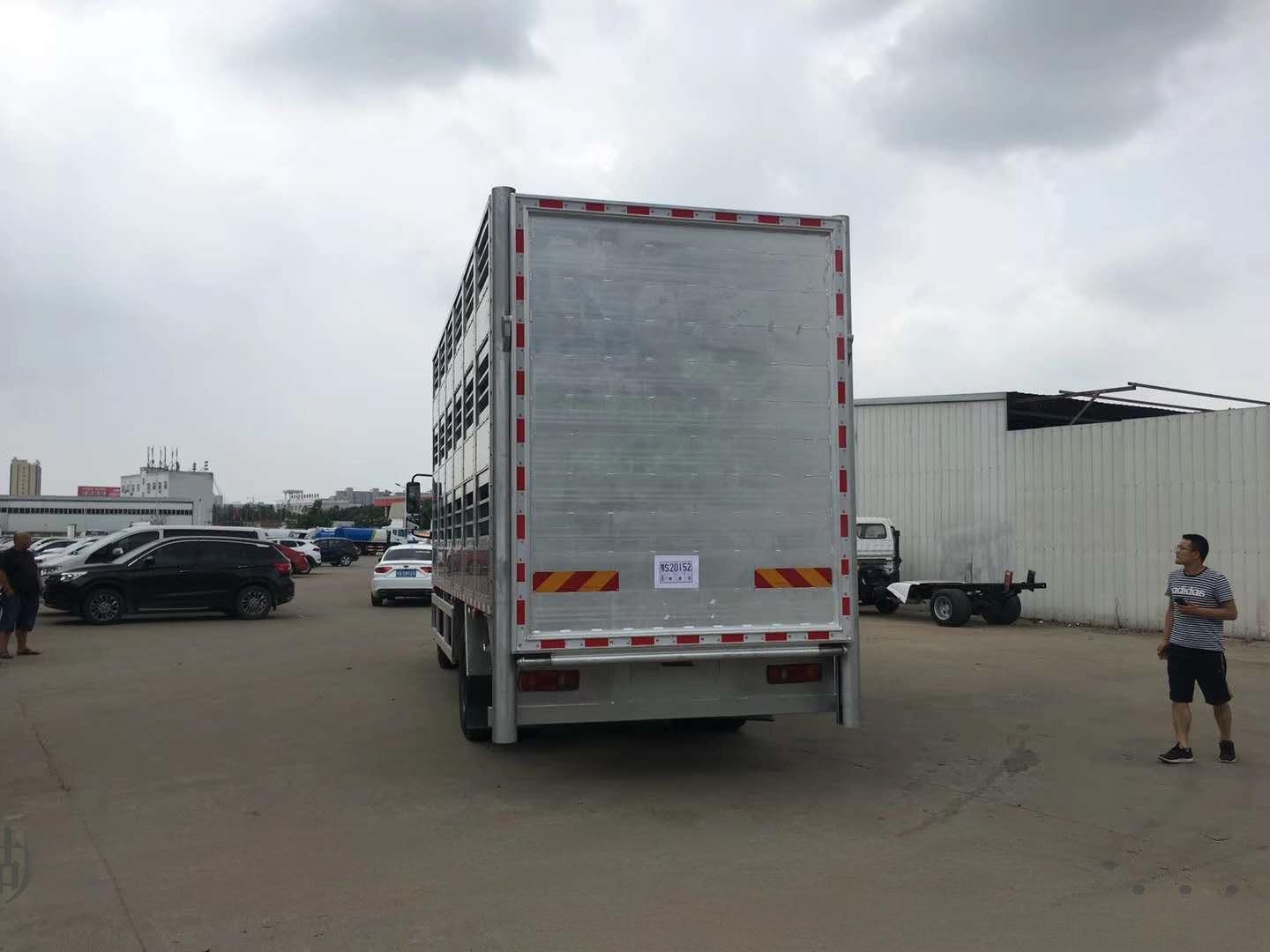

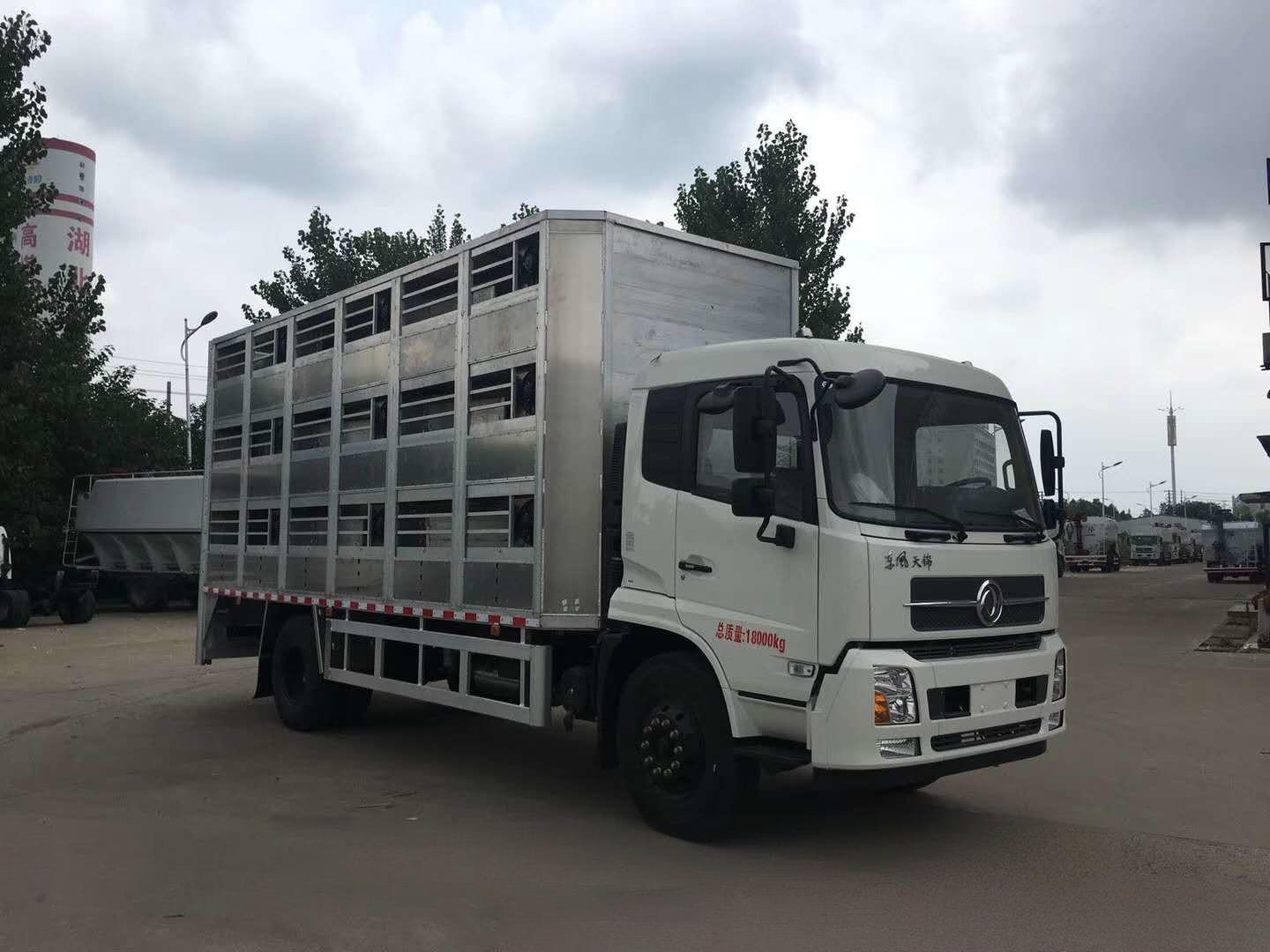

CLW5160CCQD5 Livestock and Poultry Transport   Vehicle

Product No.

ZMPNS5GN03X

Total Mass (Kg)

15800

Tank Volume (m³)

/

Rated Loading Mass (Kg)

7715

Overall Dimensions (mm)

8990×2490×3770

Curb Weight (Kg)

7890

Cargo Compartment Dimensions (mm)

6530×2360×/

Rated Passenger Capacity (Persons)

/

Permitted Towing Mass (Kg)

/

Cab Seating Capacity (Persons)

3

Loading Mass Utilization Coefficient

1.00

Approach Angle/Departure Angle (°)

20/12

Front Overhang/Rear Overhang (mm)

1430/2560, 1430/2860

Number of Axles

2

Wheelbase (mm)

4700, 5000

Axle Load (Kg)

5600/10200

Maximum Speed (Km/h)

98

Others

1. Corresponding relationship of overall   length/wheelbase/rear overhang (mm): 8990/5000/2560; 8990/4700/2860. 2. Top   closed, not openable. Cab optional with chassis; vehicle color and text   spraying position can be customized. 3. Side protection and rear lower   protection device: Material is Q235A carbon steel, connection method is   welded. Rear protection section size (mm): 120×50, rear protection ground   clearance (mm): 540. 4. Equipped with a tachograph with satellite positioning   function. Models: 3631010-C2000, 4460046440; Manufacturers: Knorr-Bremse   Commercial Vehicle Brake Systems (Shiyan) Co., Ltd., WABCO Vehicle Control   Systems (China) Co., Ltd. 6. Optional engine models: ISD190 50, ISD210 50,   ISD210 50, EQH180-52, EQH180-53, ISB180 50, ISD270 50; corresponding fuel   consumption (L/100km): 27.4, 27.3, 27.3, 24.8, 24.4, 27.8, 27.3.

【Chassis Technical   Parameters】

【Chassis Technical   Parameters】

【Chassis Technical   Parameters】

【Chassis Technical   Parameters】

Chassis Model

DFL1160BX1V

Chassis Name

Goods Vehicle Chassis (Class II)

Trademark Name

Dongfeng Brand

Manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

Overall Dimensions (mm)

7090×2370×2760, 2840

Number of Tires

6

Approach Angle/Departure Angle (°)

20/18

Tire Specification

9.00-20 16PR

Leaf Spring Number

7/9+6, 8/10+8

Front Track (mm)

1880, 1900, 1920

Fuel Type

Diesel

Rear Track (mm)

1800, 1860, 1820

Emission Standard

GB3847-2005, GB17691-2005 National V

GB3847-2005, GB17691-2005 National V

GB3847-2005, GB17691-2005 National V

Engine Model

Engine Manufacturer

Displacement (ml)

Power (Kw)

ISB180 50

Dongfeng Cummins Engine Co., Ltd.

5900

132
