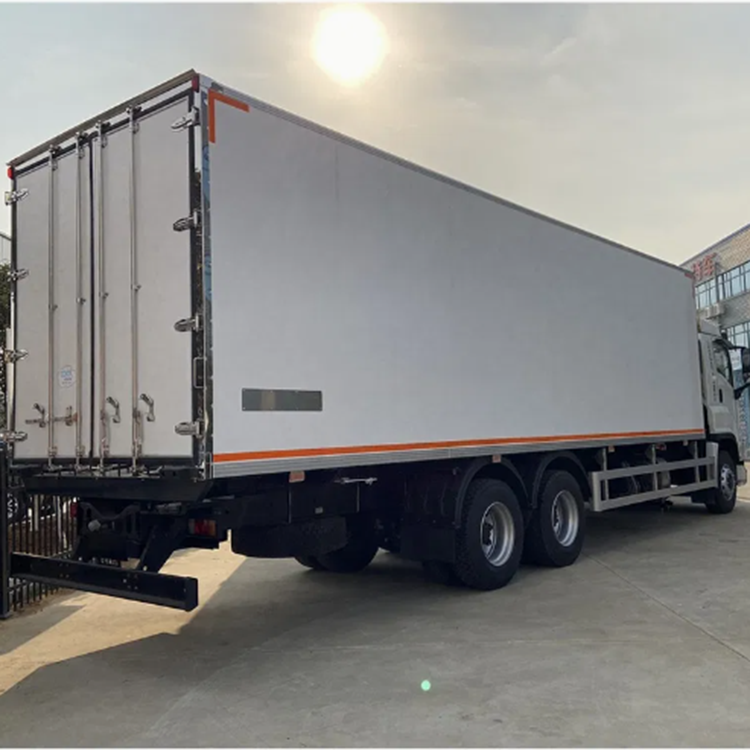

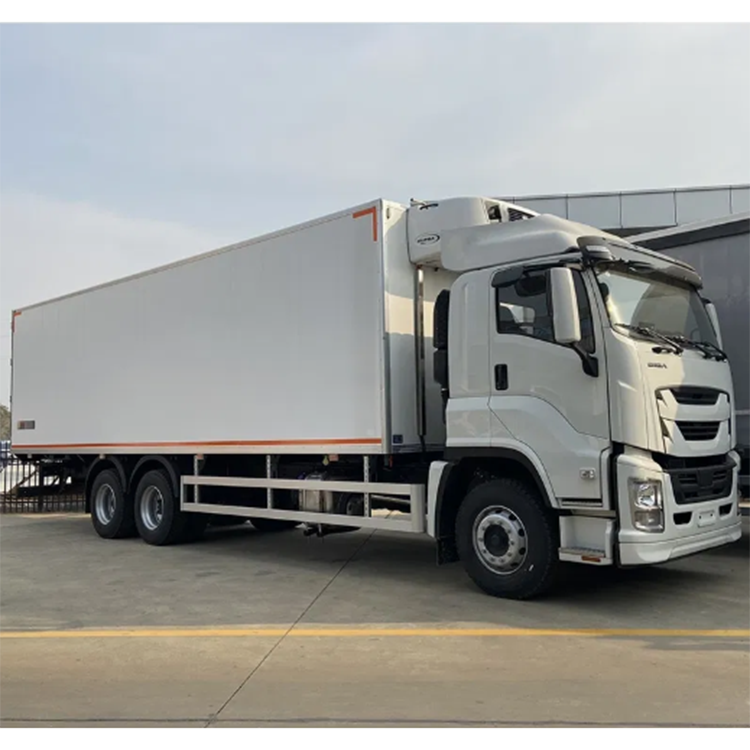

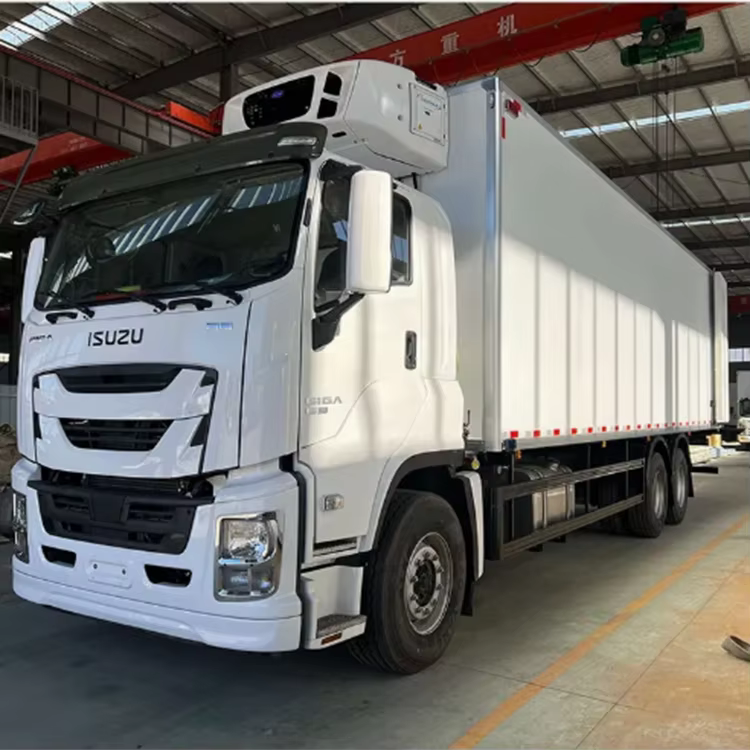

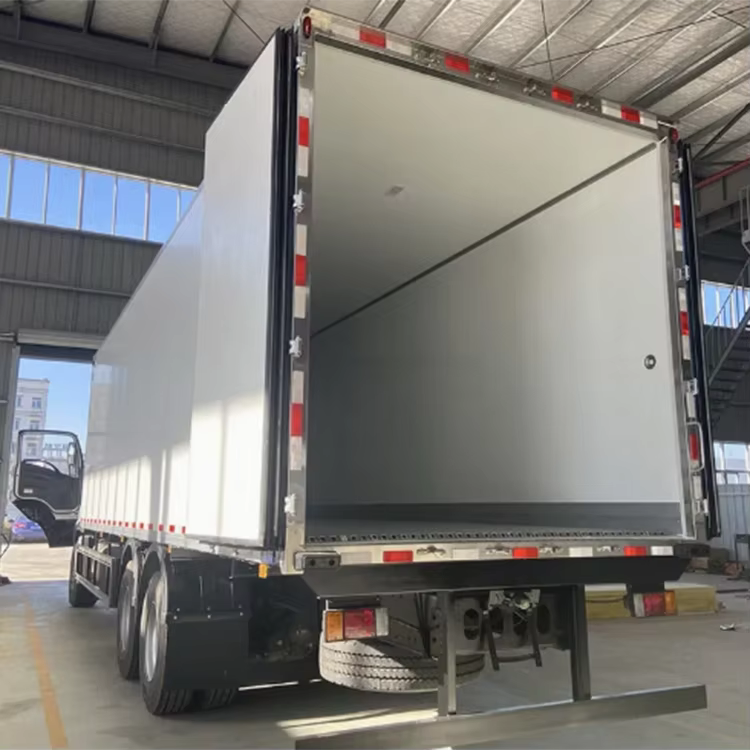

Long-Life ISUZU Reefer Truck | 100mm Insulation & CARRIER Unit for Frozen Food

Inquiry now
[Technical Parameters of the Entire Vehicle]
Kerb Weight (Kg)
10500
Overall Dimensions(mm)
10100*2550*3890
Box Volume(m³)
47
Box Size(mm)
7800*2410*2500
Refrigeration Temperature Range(℃)
-15~-25
Refrigeration Capacity (w)
6680
Condenser Size(mm)
580×1310×380
Evaporator Size(mm)
580×1220×330
Material of the Insulation Layer of the Box
Polyurethane Foam
Insulation Thickness(mm)
100
[Chassis Technical Parameters]
Trade Name
I-SUZU
Brake
Air Brake/Oil Brake
Type of Fuel
Diesel
Front Axle/Rear Axle(t)
5/13+13
Engine Power(kw)
220
Gearbox
10-Speed Transmission
Number of Axles
2
Wheelbase (mm)
4650+1370
Tire Size
295/80R22.5 18PR
