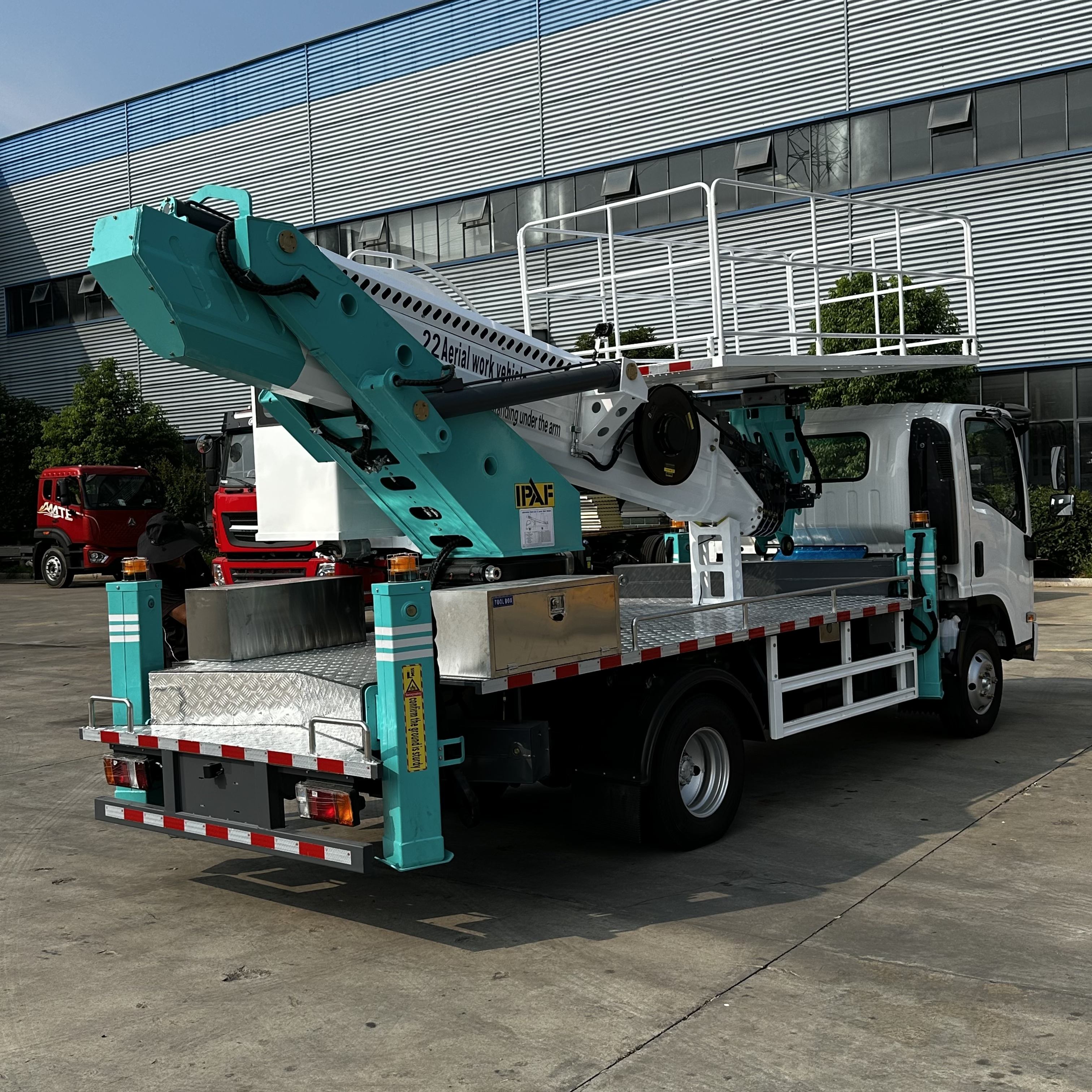

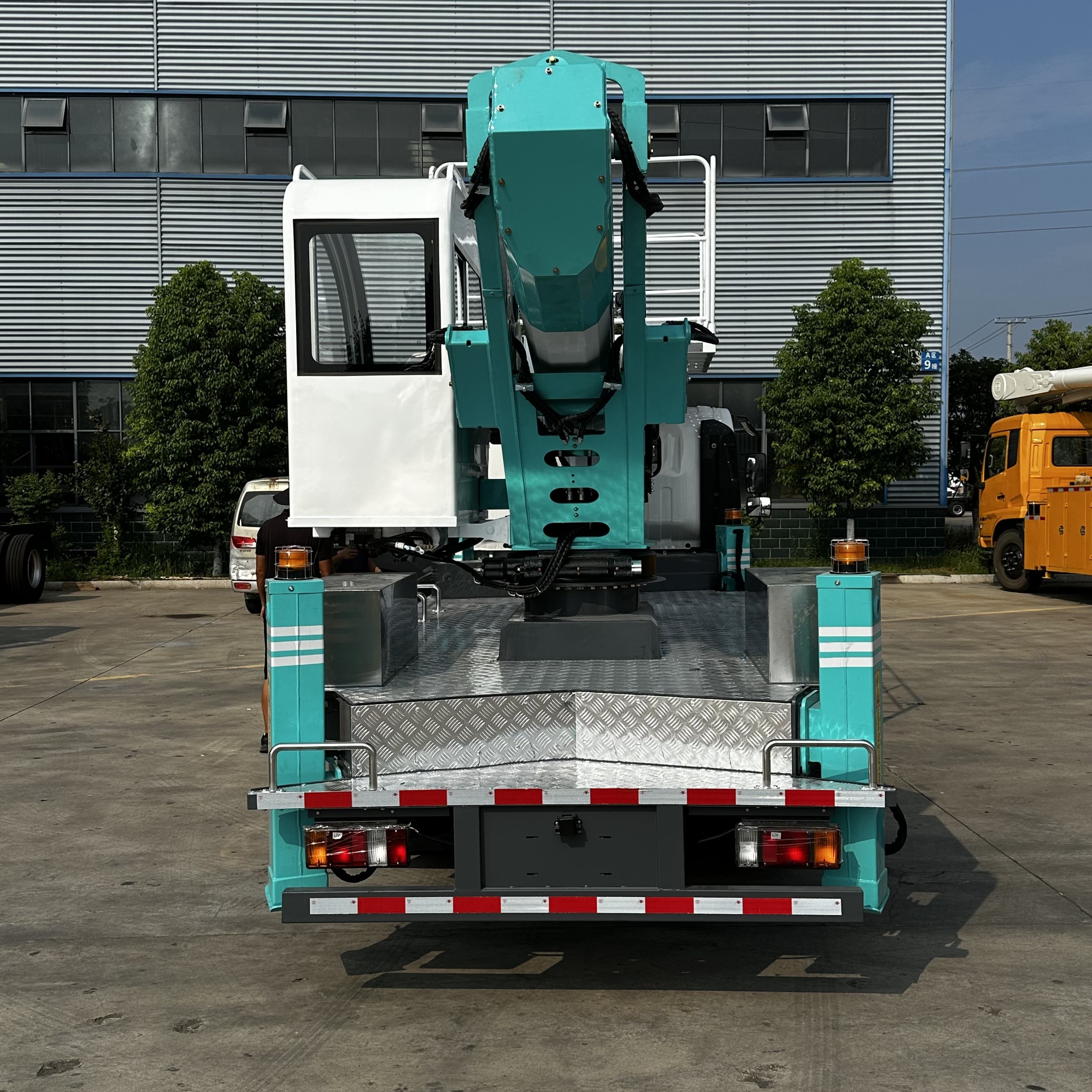

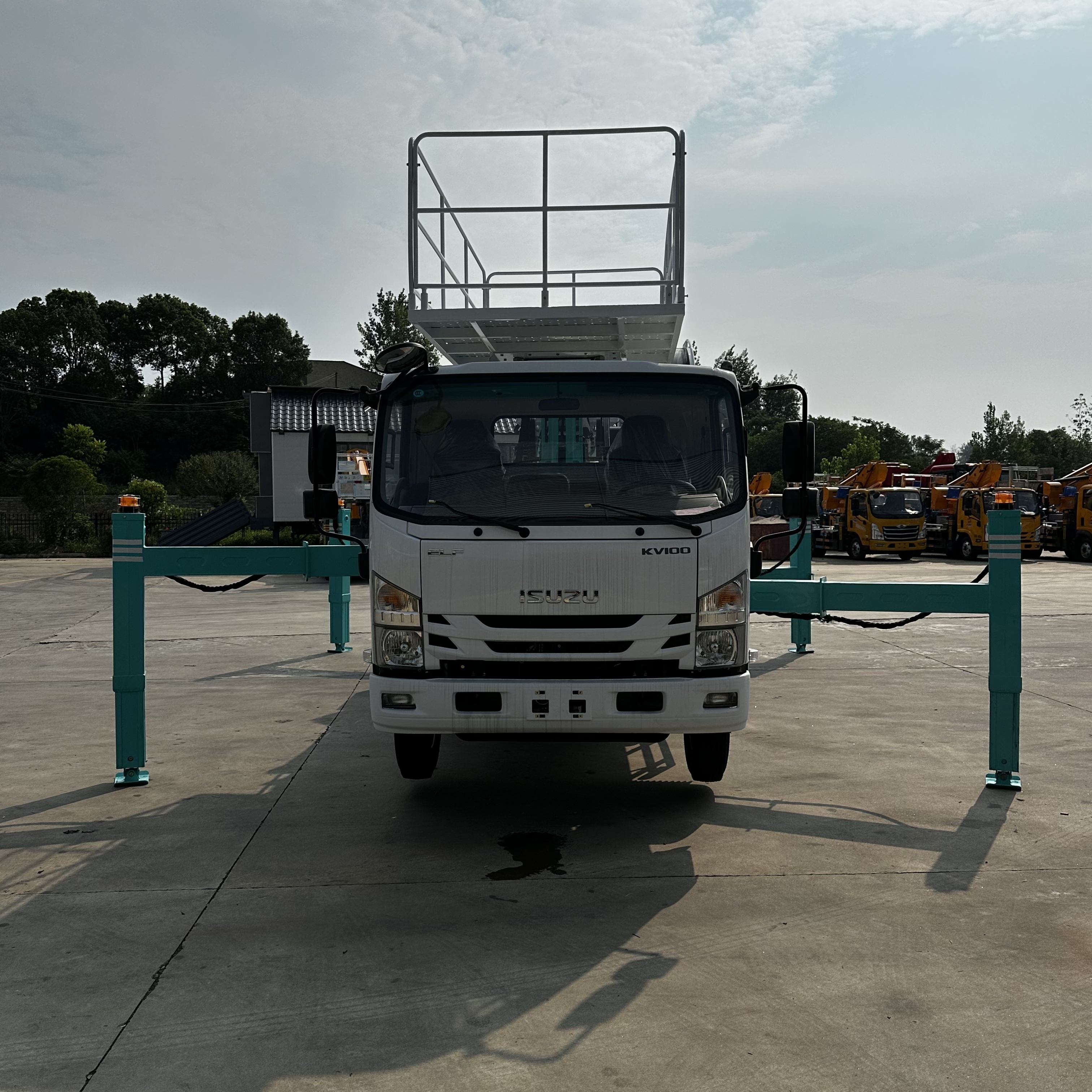

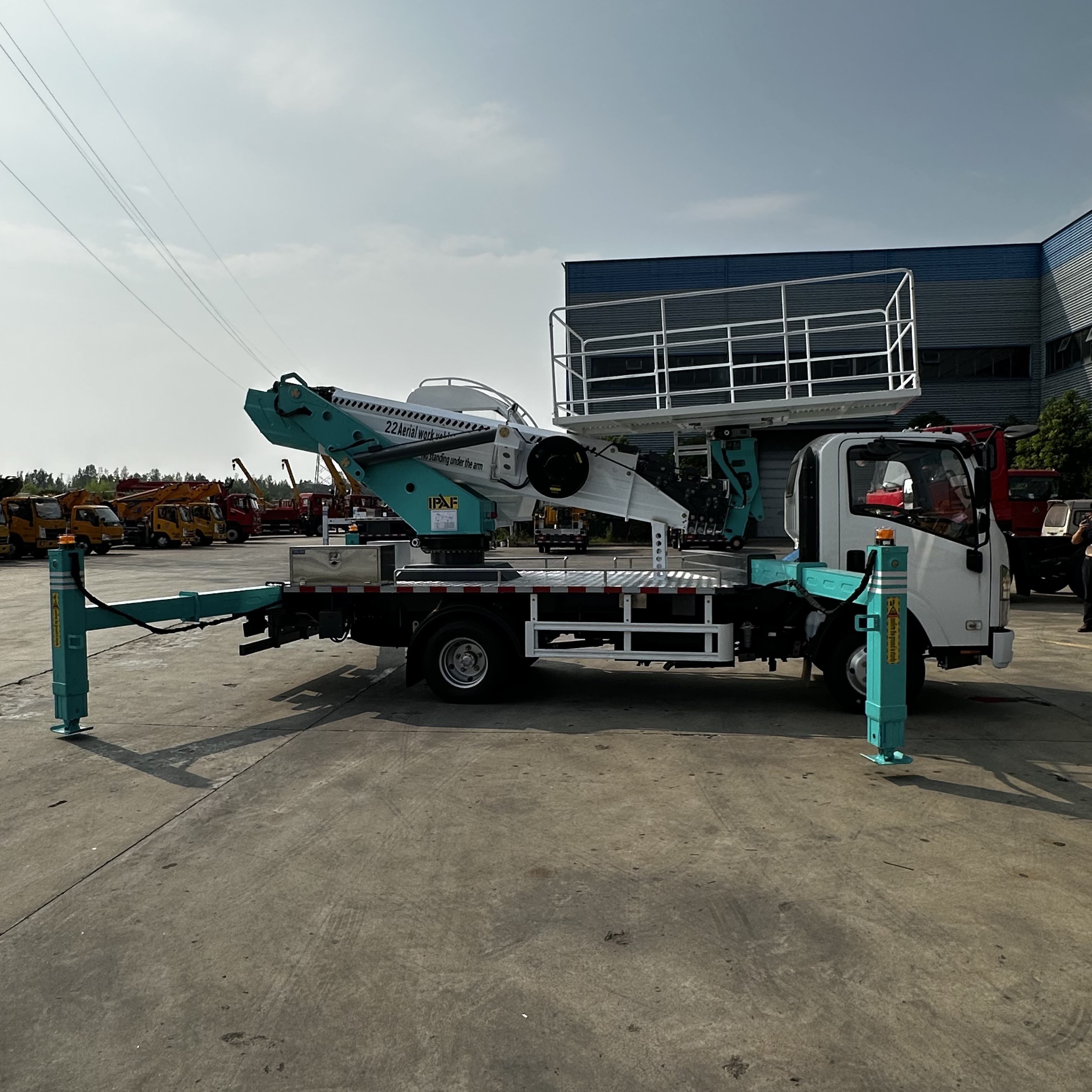

New High-Altitude Work Truck with Insulated Arm Power Repair Diesel Vehicle Manual Transmission Insu

Inquiry now

【Vehicle Technical Parameters】
Product Name	Aerial Work Platform Truck
Total Mass (Kg)	5600
Maximum working height (m)	22
Allowed Passengers	2
Maximum working radius Amplitude (m)	12
Leg Span (transverse/longitudinal)	3660/4300(mm)
Outrigger	Front V rear H type
Slewing Gear	360 ° Rotation
Lifted weight (kg)	1000
Overall Dimensions (mm)	5950×2200×3200
Platform Rated Load(kg)	400
Emergency Device	Emergency Pump
Maximum speed (km/h)	100
Warning Device	Engineering Strobe Light
Operating Mode	Remote/Manual
Horizontal Detection	Level Detector
Jib Structure	Five section hexagonal
【Chassis Technical Parameters】
Brand Name	SUZU
Fuel Type	Diesel Oil
Engine power (kw)	88
Number of Axles	2
Number of Tires	6
Front Axle/Rear Axle（t）	3.5/5.5
Gearbox Model	6-Speed Manual
Wheelbase (mm)	3365
Tire Size	7.00R16LT

Product Details
